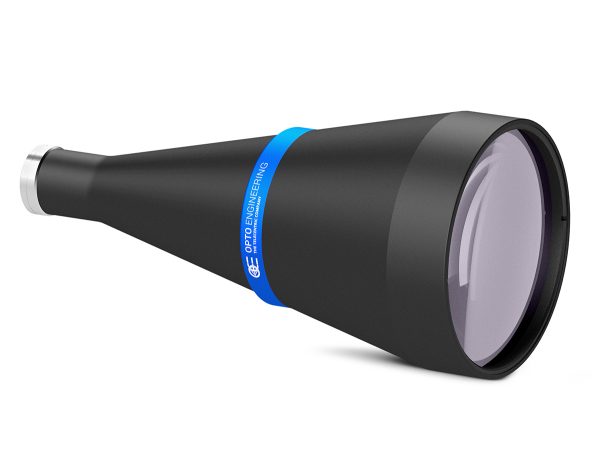

| MODEL | TC 13 096 |
| Magnification | 0.050 |
| Image Circle | 6.0 mm |
| Field of View: 1/3-in Camera | 96.00 x 72.00 mm |
| Field of View: 1/2.5-in Camera | ø = 85.6 mm |
| Field of View: 1/2-in Camera | ø = 96.0 mm |
| Field of View: 1/1.8-in Camera | ø = 106.6 mm |
| Field of View: 2/3-in Camera | ø = 120.0 mm |
| Working Distance | 278.6 mm |
| Depth of Field | 165.6 mm |
| Working F-Number | f/8 |
| Lens Mount | C-Mount |
| Lens Length | 303.3 mm |
| Lens Diameter | 143.0 mm |
| Lens Mass | 2,197 g |
DRAWING DOWNLOADS
| TC 13 096 Mechanical Drawing |  |
| TC 13 096 DXF CAD FILE |  |
| TC 13 096 IGS CAD FILE |  |
| TC 13 096 STEP FILE |  |
| TC 13 096 SOLIDWORKS FILE |  |
DATASHEET
| SPECIFICATION SHEET TC 13 096 | |
DRAWINGS AND CAD FILES
| TC 13 096 Mechanical Drawing | |
| TC 13 096 DXF CAD FILE | |
| TC 13 096 IGS CAD FILE | |
| TC 13 096 STEP FILE | |
| TC 13 096 SOLIDWORKS FILE | |
RECOMMENDED ACCESSORIES
LENS MOUNT |
CMHO 096 LENS MOUNTING CLAMP |
 |
TELECENTRIC ILLUMINATORS |
LTCLHP096‑G Telecentric Illuminator, GREEN
|
|
